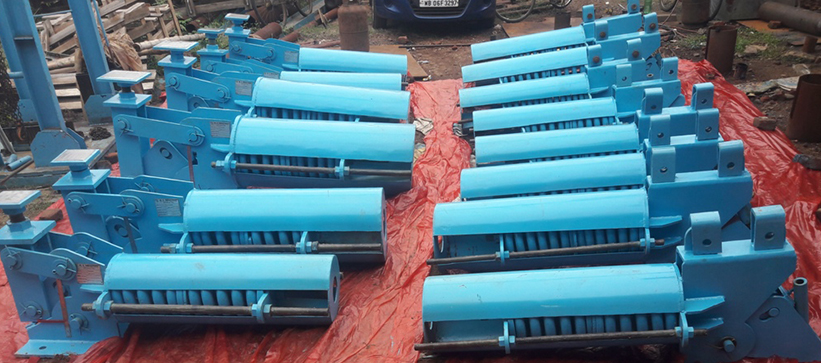

Constant Spring Support

Our constant supports/hangers are manufactured mainly in horizontal and vertical models. According to MSS-SP-58, the maximum recommended variation from the operating load for variable spring hangers is 25 %. Constant Spring Hanger Supports are use when this variation exceeds 25%. Our Constant Spring supports are cold/preset to the load specified by our client’s in our factory.

All constant hangers support ranges are three series CSH-1, CSH-2, CSH-3 in various sizes.

•   CSH-1
  Deflection up to 100 mm and load will be medium.
•  CSH-2
  Deflection up to 200 mm and load will be medium to heavy.
•  CSH-3
  Deflection up to 300 mm and load will be medium to heaviest.
